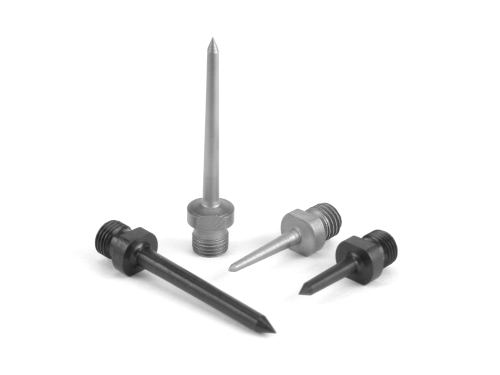

Threaded Shank Pin Point Punches
Overview of Features:
- Made from through hardened alloy steel for strength and durability.
- Five standard heights: .375"(3/8), 17/32", .750"(3/4), .875"(7/8), 1.000".
- Other available heights: 1 1/4", 1 1/2", 1 3/4", and 2.000".
- Standard pin diameters: 1/8", 5/32", and 3/16".

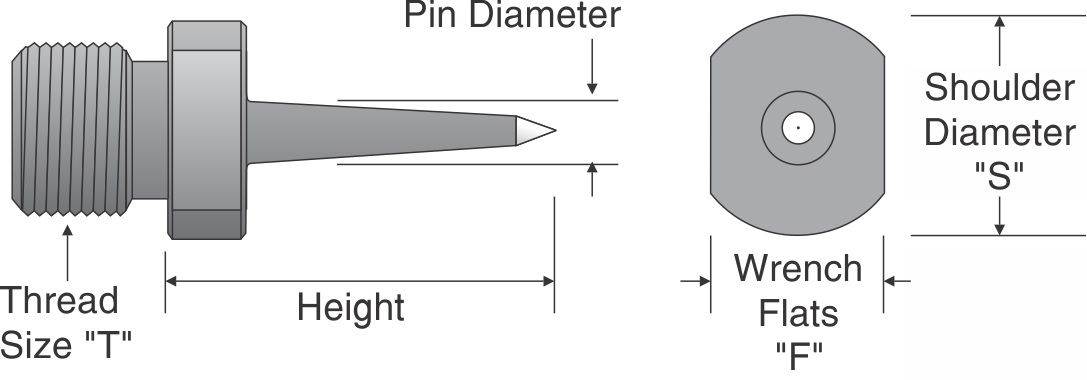

- See reference drawing here.
Threaded Shank Pin Point Punch Ordering Information
| Punch Height | Thread Size x Pitch "T" | Shoulder Dia. "S" | Wrench Flat "F" |
|---|---|---|---|
| 3/8, 17/32, 3/4, 1” | .295 x 32 | 3/8" | 5/16" |
| 7/8" | .294 x 24 | 3/8" | 5/16" |
Available pin diameters: 1/8", 5/32", and 3/16".
To order threaded shank pin point punches please specify:- Pin diameter
- Height
To order threaded shank pin point punches, specify pin diameter and height.
Don't see what you need? We'll make it for you! Submit an RFQ now.
