Threaded Shank Punch Handles
Overview of Features:

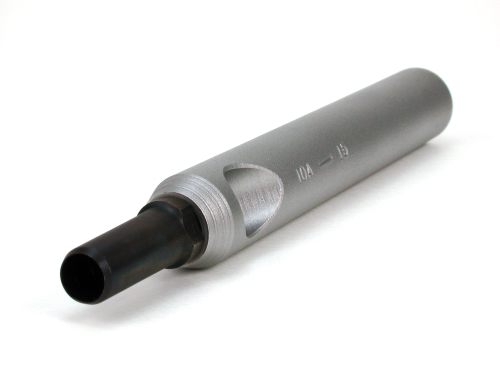

- C & K offers a complete line of solid steel handles to fit all cutting sizes.
- Solid steel construction, 4" standard length.
- Side outlet hole for waste ejection.
- Use for hand punching operations or as height extension in production dies.
- See reference drawing here.
Threaded Shank Punch Handle Sizes
Part Number | Fits Punch Number | Outside Diameter |
---|---|---|
HAND1 | Pin, #1-11 Tubes (except 7/8" height) | 1/2" |
HAND1A | Pin, #1-11 Tubes (7/8" height only) | 1/2" |
HAND12 | #10A, 12-15 Tubes | 5/8" |
HAND16 | #15A, 16-18 Tubes | 3/4" |
HAND19 | #18A, 19-22 Tubes | 1" |
HAND23 | #22A, 23-24 Tubes | 1 1/8" |
HAND25 | #25-26 Tubes | 1 3/8" |
HAND27 | #27-28 Tubes | 1 3/8" |
HAND29 | #29-30 Tubes | 1 1/2" |
