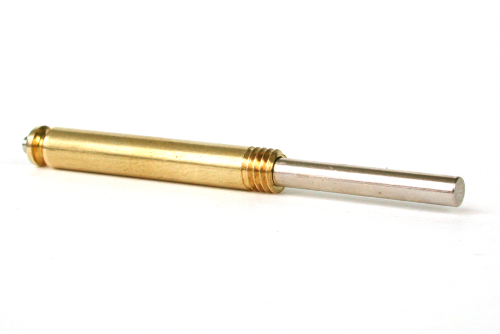

Brass Body Retractable Guide Pins
- Screw-in design: 10 x 32 x 3/32” long threaded barrel.
- Nickel plated steel pin extends through body upon compression.
- Durable stainless steel interior spring.
- See reference drawing here.

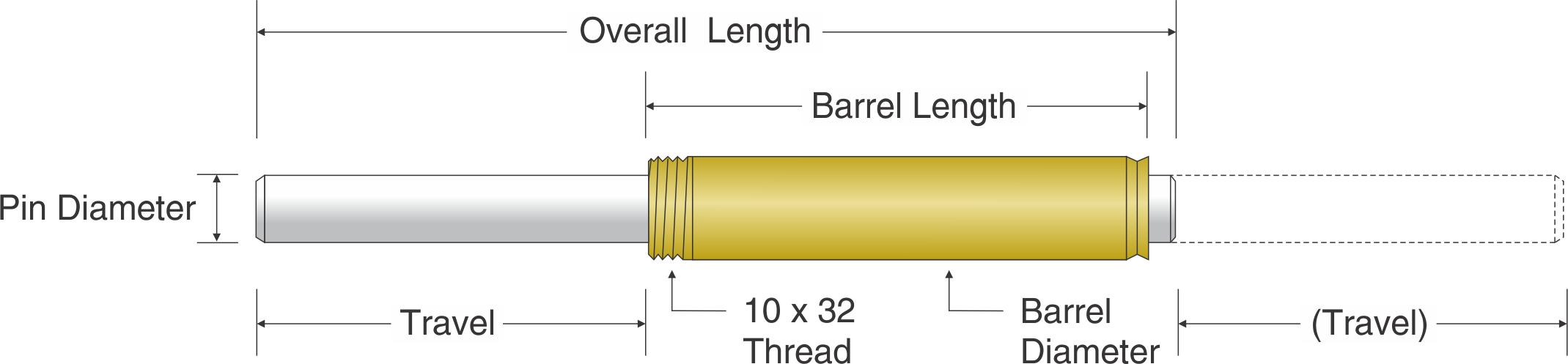

Brass Body Retractable Guide Pin Reference Drawing
Brass Retractable Guide Pin Sizes
| Barrel | Pin | ||||
|---|---|---|---|---|---|
| Order Number | Overall Length | Diameter | Length | Diameter | Travel |
| CK7 | 1 1/4" | 3/16" | 13/16" | 1/8" | 7/16" |
| CK8 | 1 19/32" | 3/16" | 1 1/32" | 1/8" | 9/16" |
| CK9 | 2 1/16" | 3/16" | 1 1/4" | 1/8" | 13/16" |
