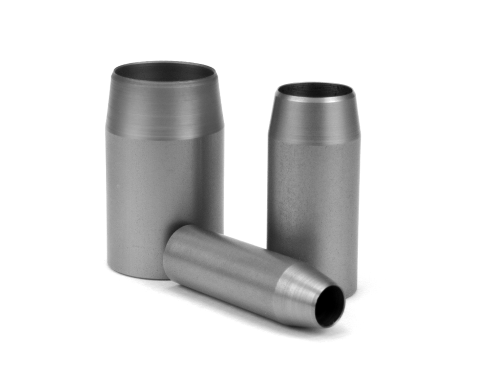

Seamless Feed-Thru Punches
C & K Seamless Feed-Thru Punches, also called "clicker" punches are often used to cut leather products, gaskets, rubber, foam, and similar materials. Feed-Thru punches are machined with additional internal clearance behind the cutting edge to facilitate the ejection of cut disks through the back of the punch.
Our Feed-Thru punches are constructed of carbon steel and are vacuum carbonitride hardened and double tempered for long life.
Standard Heights: 3/4", .937", 1", 1 1/8", 1 1/4", 1 1/2" and 2"
Seamless Feed-Thru Punches

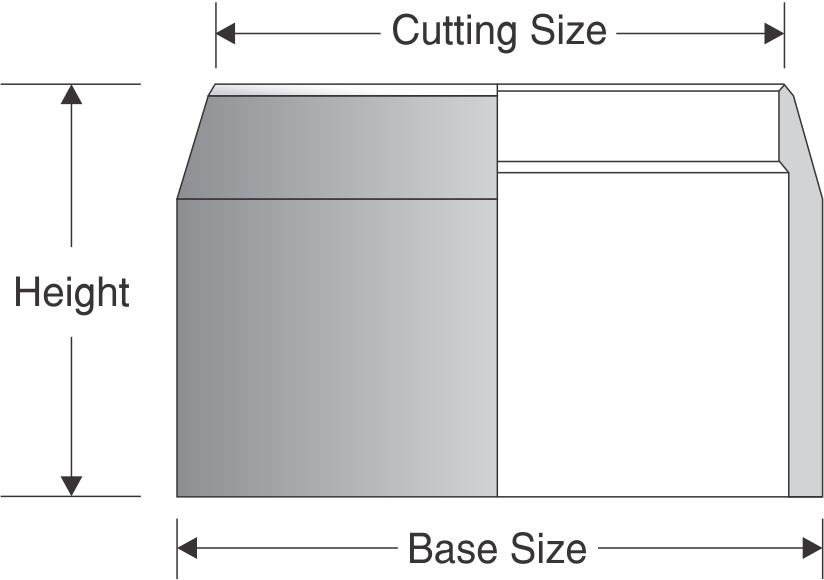

To order seamless feed-thru punches please specify:
- Cutting Size
- Base size
- Height
Seamless Feed-Thru Punch Internal Clearance
Machined Internal Clearance allows cut discs to flow easily from the cutting edge, through the punch body, and eject from the back of the punch.
Cutting Sizes and Base Sizes for Seamless Feed-Thru Punches
| Cutting Size | |||
|---|---|---|---|
| Fraction | Decimal | Millimeter | Base Size |
| Cutting Size | |||
|---|---|---|---|
| Fraction | Decimal | Millimeter | Base Size |
| 1/32" | .031" | .79mm | 1/8" |
| 3/64" | .046" | 1.19mm | 3/16" |
| 1/16" | .062" | 1.59mm | 3/16" |
| 5/64" | .078" | 1.98mm | 3/16" |
| 3/32" | .093" | 2.38mm | 3/16" |
| 7/64" | .109" | 2.78mm | 1/4" |
| 1/8" | .125" | 3.17mm | 1/4" |
| 9/64" | .140" | 3.57mm | 1/4" |
| 5/32" | .156" | 3.97mm | 1/4" |
| 11/64" | .171" | 4.37mm | 5/16" |
| 3/16" | .187" | 4.76mm | 5/16" |
| 13/64" | .203" | 5.16mm | 5/16" |
| 7/32" | .218" | 5.56mm | 5/16" |
| 15/64" | .234" | 5.95mm | 3/8" |
| 1/4" | .250" | 6.35mm | 3/8" |
| 17/64" | .265" | 6.75mm | 3/8" |
| 9/32" | .281" | 7.14mm | 3/8" |
| 19/64" | .296" | 7.54mm | 7/16" |
| 5/16" | .312" | 7.94mm | 7/16" |
| 21/64" | .328" | 8.33mm | 7/16" |
| 11/32" | .343" | 8.73mm | 7/16" |
| 23/64" | .359" | 9.13mm | 1/2" |
| 3/8" | .375" | 9.52mm | 1/2" |
| 25/64" | .390" | 9.92mm | 1/2" |
| 13/32" | .406" | 10.32mm | 1/2" |
| 27/64" | .421" | 10.72mm | 9/16" |
| 7/16" | .437" | 11.11mm | 9/16" |
| 29/64" | .453" | 11.51mm | 9/16" |
| 15/32" | .468" | 11.91mm | 9/16" |
| 31/64" | .484" | 12.30mm | 5/8" |
| 1/2" | .500" | 12.70mm | 5/8" |
| 33/64" | .515" | 13.10mm | 5/8" |
| 17/32" | .531" | 13.49mm | 5/8" |
| 35/64" | .546" | 13.89mm | 11/16" |
| 9/16" | .562" | 14.29mm | 11/16" |
| 37/64" | .578" | 14.68mm | 11/16" |
| 19/32" | .593" | 15.08mm | 11/16" |
| 39/64" | .609" | 15.48mm | 3/4" |
| 5/8" | .625" | 15.87mm | 3/4" |
| 41/64" | .640" | 16.27mm | 3/4" |
| 21/32" | .656" | 16.67mm | 3/4" |
| 43/64" | .671" | 17.07mm | 13/16" |
| 11/16" | .687" | 17.46mm | 13/16" |
| 45/64" | .703" | 17.86mm | 13/16" |
| 23/32" | .718" | 18.26mm | 13/16" |
| 47/64" | .734" | 18.65mm | 7/8" |
| 3/4" | .750" | 19.05mm | 7/8" |
| 49/64" | .765" | 19.45mm | 7/8" |
| 25/32" | .781" | 19.84mm | 7/8" |
| 51/64" | .796" | 20.24mm | 15/16" |
| 13/16" | .812" | 20.64mm | 15/16" |
| 53/64" | .828" | 21.03mm | 15/16" |
| 27/32" | .843" | 21.43mm | 15/16" |
| 55/64" | .859" | 21.83mm | 1" |
| 7/8" | .875" | 22.22mm | 1" |
| 57/64" | .890" | 22.62mm | 1" |
| 29/32" | .906" | 23.02mm | 1" |
| 59/64" | .921" | 23.42mm | 1 1/16" |
| 15/16" | .937" | 23.81mm | 1 1/16" |
| 61/64" | .953" | 24.21mm | 1 1/16" |
| 31/32" | .968" | 24.61mm | 1 1/16" |
| 63/64" | .984" | 25.00mm | 1 1/8" |
| 1" | 1.000" | 25.40mm | 1 1/8" |
| Cutting Size | |||
|---|---|---|---|
| Fraction | Decimal | Millimeter | Base Size |
| 1 1/64" | 1.015" | 25.80mm | 1 1/8" |
| 1 1/32" | 1.031" | 26.19mm | 1 1/8" |
| 1 3/64" | 1.046" | 26.59mm | 1 3/16" |
| 1 1/16" | 1.062" | 26.99mm | 1 3/16" |
| 1 5/64" | 1.078" | 27.38mm | 1 3/16" |
| 1 3/32" | 1.093" | 27.78mm | 1 3/16" |
| 1 7/64" | 1.109" | 28.18mm | 1 1/4" |
| 1 1/8" | 1.125" | 28.57mm | 1 1/4" |
| 1 9/64" | 1.140" | 28.97mm | 1 1/4" |
| 1 5/32" | 1.156" | 29.37mm | 1 1/4" |
| 1 11/64" | 1.171" | 29.77mm | 1 5/16" |
| 1 3/16" | 1.187" | 30.16mm | 1 5/16" |
| 1 13/64" | 1.203" | 30.56mm | 1 5/16" |
| 1 7/32" | 1.218" | 30.96mm | 1 5/16" |
| 1 15/64" | 1.234" | 31.35mm | 1 3/8" |
| 1 1/4" | 1.250" | 31.75mm | 1 3/8" |
| 1 17/64" | 1.265" | 32.15mm | 1 3/8" |
| 1 9/32" | 1.281" | 32.54mm | 1 3/8" |
| 1 19/64" | 1.296" | 32.94mm | 1 7/16" |
| 1 5/16" | 1.312" | 33.34mm | 1 7/16" |
| 1 21/64" | 1.328" | 33.73mm | 1 7/16" |
| 1 11/32" | 1.343" | 34.13mm | 1 7/16" |
| 1 23/64" | 1.359" | 34.53mm | 1 1/2" |
| 1 3/8" | 1.375" | 34.92mm | 1 1/2" |
| 1 25/64" | 1.390" | 35.32mm | 1 1/2" |
| 1 13/32" | 1.406" | 35.72mm | 1 1/2" |
| 1 27/64" | 1.421" | 36.12mm | 1 9/16" |
| 1 7/16" | 1.437" | 36.51mm | 1 9/16" |
| 1 29/64" | 1.453" | 36.91mm | 1 9/16" |
| 1 15/32" | 1.468" | 37.31mm | 1 9/16" |
| 1 31/64" | 1.484" | 37.70mm | 1 5/8" |
| 1 1/2" | 1.500" | 38.10mm | 1 5/8" |
| 1 33/64" | 1.515" | 38.50mm | 1 5/8" |
| 1 17/32" | 1.531" | 38.89mm | 1 5/8" |
| 1 35/64" | 1.546" | 39.29mm | 1 11/16" |
| 1 9/16" | 1.562" | 39.69mm | 1 11/16" |
| 1 37/64" | 1.578" | 40.08mm | 1 11/16" |
| 1 19/32" | 1.593" | 40.48mm | 1 11/16" |
| 1 39/64" | 1.609" | 40.88mm | 1 3/4" |
| 1 5/8" | 1.625" | 41.27mm | 1 3/4" |
| 1 41/64" | 1.640" | 41.67mm | 1 3/4" |
| 1 21/32" | 1.656" | 42.07mm | 1 3/4" |
| 1 43/64" | 1.671" | 42.47mm | 1 13/16" |
| 1 11/16" | 1.687" | 42.86mm | 1 13/16" |
| 1 45/64" | 1.703" | 43.26mm | 1 13/16" |
| 1 23/32" | 1.718" | 43.66mm | 1 13/16" |
| 1 47/64" | 1.734" | 44.05mm | 1 7/8" |
| 1 3/4" | 1.750" | 44.45mm | 1 7/8" |
| 1 49/64" | 1.765" | 44.85mm | 1 7/8" |
| 1 25/32" | 1.781" | 45.24mm | 1 7/8" |
| 1 51/64" | 1.796" | 45.64mm | 1 15/16" |
| 1 13/16" | 1.812" | 46.04mm | 1 15/16" |
| 1 53/64" | 1.828" | 46.43mm | 1 15/16" |
| 1 27/32" | 1.843" | 46.83mm | 1 15/16" |
| 1 55/64" | 1.859" | 47.23mm | 2" |
| 1 7/8" | 1.875" | 47.62mm | 2" |
| 1 57/64" | 1.890" | 48.02mm | 2" |
| 1 29/32" | 1.906" | 48.42mm | 2" |
| 1 59/64" | 1.921" | 48.82mm | 2 1/16" |
| 1 15/16" | 1.937" | 49.21mm | 2 1/16" |
| 1 61/64" | 1.953" | 49.61mm | 2 1/16" |
| 1 31/32" | 1.968" | 50.01mm | 2 1/16" |
| 1 63/64" | 1.984" | 50.40mm | 2 1/8" |
| 2" | 2.000" | 50.80mm | 2 1/8" |
| Cutting Size | |||
|---|---|---|---|
| Fraction | Decimal | Millimeter | Base Size |
| 2 1/64" | 2.015" | 51.20mm | 2 1/8" |
| 2 1/32" | 2.031" | 51.59mm | 2 1/8" |
| 2 3/64" | 2.046" | 51.99mm | 2 3/16" |
| 2 1/16" | 2.062" | 52.39mm | 2 3/16" |
| 2 5/64" | 2.078" | 52.78mm | 2 3/16" |
| 2 3/32" | 2.093" | 53.18mm | 2 3/16" |
| 2 7/64" | 2.109" | 53.58mm | 2 1/4" |
| 2 1/8" | 2.125" | 53.97mm | 2 1/4" |
| 2 9/64" | 2.140" | 54.37mm | 2 1/4" |
| 2 5/32" | 2.156" | 54.77mm | 2 1/4" |
| 2 11/64" | 2.171" | 55.17mm | 2 5/16" |
| 2 3/16" | 2.187" | 55.56mm | 2 5/16" |
| 2 13/64" | 2.203" | 55.96mm | 2 5/16" |
| 2 7/32" | 2.218" | 56.36mm | 2 5/16" |
| 2 15/64" | 2.234" | 56.75mm | 2 3/8" |
| 2 1/4" | 2.250" | 57.15mm | 2 3/8" |
| 2 17/64" | 2.265" | 57.55mm | 2 3/8" |
| 2 9/32" | 2.281" | 57.94mm | 2 3/8" |
| 2 19/64" | 2.296" | 58.34mm | 2 7/16" |
| 2 5/16" | 2.312" | 58.74mm | 2 7/16" |
| 2 21/64" | 2.328" | 59.13mm | 2 7/16" |
| 2 11/32" | 2.343" | 59.53mm | 2 7/16" |
| 2 23/64" | 2.359" | 59.93mm | 2 1/2" |
| 2 3/8" | 2.375" | 60.32mm | 2 1/2" |
| 2 25/64" | 2.390" | 60.72mm | 2 1/2" |
| 2 13/32" | 2.406" | 61.12mm | 2 1/2" |
| 2 27/64" | 2.421" | 61.52mm | 2 9/16" |
| 2 7/16" | 2.437" | 61.91mm | 2 9/16" |
| 2 29/64" | 2.453" | 62.31mm | 2 9/16" |
| 2 15/32" | 2.468" | 62.71mm | 2 9/16" |
| 2 31/64" | 2.484" | 63.10mm | 2 5/8" |
| 2 1/2" | 2.500" | 63.50mm | 2 5/8" |
| 2 33/64" | 2.515" | 63.90mm | 2 5/8" |
| 2 17/32" | 2.531" | 64.29mm | 2 5/8" |
| 2 35/64" | 2.546" | 64.69mm | 2 11/16" |
| 2 9/16" | 2.562" | 65.09mm | 2 11/16" |
| 2 37/64" | 2.578" | 65.48mm | 2 11/16" |
| 2 19/32" | 2.593" | 65.88mm | 2 11/16" |
| 2 39/64" | 2.609" | 66.28mm | 2 3/4" |
| 2 5/8" | 2.625" | 66.67mm | 2 3/4" |
| 2 41/64" | 2.640" | 67.07mm | 2 3/4" |
| 2 21/32" | 2.656" | 67.47mm | 2 3/4" |
| 2 43/64" | 2.671" | 67.87mm | 2 13/16" |
| 2 11/16" | 2.687" | 68.26mm | 2 13/16" |
| 2 45/64" | 2.703" | 68.66mm | 2 13/16" |
| 2 23/32" | 2.718" | 69.06mm | 2 13/16" |
| 2 47/64" | 2.734" | 69.45mm | 2 7/8" |
| 2 3/4" | 2.750" | 69.85mm | 2 7/8" |
| 2 49/64" | 2.765" | 70.25mm | 2 7/8" |
| 2 25/32" | 2.781" | 70.64mm | 2 7/8" |
| 2 51/64" | 2.796" | 71.04mm | 2 15/16" |
| 2 13/16" | 2.812" | 71.44mm | 2 15/16" |
| 2 53/64" | 2.828" | 71.83mm | 2 15/16" |
| 2 27/32" | 2.843" | 72.23mm | 2 15/16" |
| 2 55/64" | 2.859" | 72.63mm | 3" |
| 2 7/8" | 2.875" | 73.02mm | 3" |
| 2 57/64" | 2.890" | 73.42mm | 3" |
| 2 29/32" | 2.906" | 73.82mm | 3" |
| 2 59/64" | 2.921" | 74.22mm | 3 1/16" |
| 2 15/16" | 2.937" | 74.61mm | 3 1/16" |
| 2 61/64" | 2.953" | 75.01mm | 3 1/16" |
| 2 31/32" | 2.968" | 75.41mm | 3 1/16" |
| 2 63/64" | 2.984" | 75.80mm | 3 1/8" |
| 3" | 3.000" | 76.20mm | 3 3/16" |
| Cutting Size | |||
|---|---|---|---|
| Fraction | Decimal | Millimeter | Base Size |
| 3 1/64" | 3.015" | 76.60mm | 3 3/16" |
| 3 1/32" | 3.031" | 76.99mm | 3 3/16" |
| 3 3/64" | 3.046" | 77.39mm | 3 1/4" |
| 3 1/16" | 3.062" | 77.79mm | 3 1/4" |
| 3 5/64" | 3.078" | 78.18mm | 3 1/4" |
| 3 3/32" | 3.093" | 78.58mm | 3 1/4" |
| 3 7/64" | 3.109" | 78.98mm | 3 5/16" |
| 3 1/8" | 3.125" | 79.37mm | 3 5/16" |
| 3 9/64" | 3.140" | 79.77mm | 3 5/16" |
| 3 5/32" | 3.156" | 80.17mm | 3 5/16" |
| 3 11/64" | 3.171" | 80.57mm | 3 3/8" |
| 3 3/16" | 3.187" | 80.96mm | 3 3/8" |
| 3 13/64" | 3.203" | 81.36mm | 3 3/8" |
| 3 7/32" | 3.218" | 81.76mm | 3 3/8" |
| 3 15/64" | 3.234" | 82.15mm | 3 7/16" |
| 3 1/4" | 3.250" | 82.55mm | 3 7/16" |
| 3 17/64" | 3.265" | 82.95mm | 3 7/16" |
| 3 9/32" | 3.281" | 83.34mm | 3 7/16" |
| 3 19/64" | 3.296" | 83.74mm | 3 1/2" |
| 3 5/16" | 3.312" | 84.14mm | 3 1/2" |
| 3 21/64" | 3.328" | 84.53mm | 3 1/2" |
| 3 11/32" | 3.343" | 84.93mm | 3 1/2" |
| 3 23/64" | 3.359" | 85.33mm | 3 9/16" |
| 3 3/8" | 3.375" | 85.72mm | 3 9/16" |
| 3 25/64" | 3.390" | 86.12mm | 3 9/16" |
| 3 13/32" | 3.406" | 86.52mm | 3 9/16" |
| 3 27/64" | 3.421" | 86.92mm | 3 5/8" |
| 3 7/16" | 3.437" | 87.31mm | 3 5/8" |
| 3 29/64" | 3.453" | 87.71mm | 3 5/8" |
| 3 15/32" | 3.468" | 88.11mm | 3 5/8" |
| 3 31/64" | 3.484" | 88.50mm | 3 11/16" |
| 3 1/2" | 3.500" | 88.90mm | 3 11/16" |
| 3 33/64" | 3.515" | 89.30mm | 3 11/16" |
| 3 17/32" | 3.531" | 89.69mm | 3 11/16" |
| 3 35/64" | 3.546" | 90.09mm | 3 3/4" |
| 3 9/16" | 3.562" | 90.49mm | 3 3/4" |
| 3 37/64" | 3.578" | 90.88mm | 3 3/4" |
| 3 19/32" | 3.593" | 91.28mm | 3 3/4" |
| 3 39/64" | 3.609" | 91.68mm | 3 13/16" |
| 3 5/8" | 3.625" | 92.07mm | 3 13/16" |
| 3 41/64" | 3.640" | 92.47mm | 3 13/16" |
| 3 21/32" | 3.656" | 92.87mm | 3 13/16" |
| 3 43/64" | 3.671" | 93.27mm | 3 7/8" |
| 3 11/16" | 3.687" | 93.66mm | 3 7/8" |
| 3 45/64" | 3.703" | 94.06mm | 3 7/8" |
| 3 23/32" | 3.718" | 94.46mm | 3 7/8" |
| 3 47/64" | 3.734" | 94.85mm | 3 15/16" |
| 3 3/4" | 3.750" | 95.25mm | 3 15/16" |
| 3 49/64" | 3.765" | 95.65mm | 3 15/16" |
| 3 25/32" | 3.781" | 96.04mm | 3 15/16" |
| 3 51/64" | 3.796" | 96.44mm | 4" |
| 3 13/16" | 3.812" | 96.84mm | 4" |
| 3 53/64" | 3.828" | 97.23mm | 4" |
| 3 27/32" | 3.843" | 97.63mm | 4" |
| 3 55/64" | 3.859" | 98.03mm | 4 1/16" |
| 3 7/8" | 3.875" | 98.42mm | 4 1/16" |
| 3 57/64" | 3.890" | 98.82mm | 4 1/16" |
| 3 29/32" | 3.906" | 99.22mm | 4 1/16" |
| 3 59/64" | 3.921" | 99.62mm | 4 1/8" |
| 3 15/16" | 3.937" | 100.01mm | 4 1/8" |
| 3 61/64" | 3.953" | 100.41mm | 4 1/8" |
| 3 31/32" | 3.968" | 100.81mm | 4 1/8" |
| 3 63/64" | 3.984" | 101.20mm | 4 3/16" |
| 4" | 4.000" | 101.60mm | 4 3/16" |
| Cutting Size | |||
|---|---|---|---|
| Fraction | Decimal | Millimeter | Base Size |
| 4 1/64" | 4.015" | 102.00mm | 4 3/16" |
| 4 1/32" | 4.031" | 102.39mm | 4 3/16" |
| 4 3/64" | 4.046" | 102.79mm | 4 1/4" |
| 4 1/16" | 4.062" | 103.19mm | 4 1/4" |
| 4 5/64" | 4.078" | 103.58mm | 4 1/4" |
| 4 3/32" | 4.093" | 103.98mm | 4 1/4" |
| 4 7/64" | 4.109" | 104.38mm | 4 5/16" |
| 4 1/8" | 4.125" | 104.77mm | 4 5/16" |
| 4 9/64" | 4.140" | 105.17mm | 4 5/16" |
| 4 5/32" | 4.156" | 105.57mm | 4 5/16" |
| 4 11/64" | 4.171" | 105.97mm | 4 3/8" |
| 4 3/16" | 4.187" | 106.36mm | 4 3/8" |
| 4 13/64" | 4.203" | 106.76mm | 4 3/8" |
| 4 7/32" | 4.218" | 107.16mm | 4 3/8" |
| 4 15/64" | 4.234" | 107.55mm | 4 7/16" |
| 4 1/4" | 4.250" | 107.95mm | 4 7/16" |
| 4 17/64" | 4.265" | 108.35mm | 4 7/16" |
| 4 9/32" | 4.281" | 108.74mm | 4 7/16" |
| 4 19/64" | 4.296" | 109.14mm | 4 1/2" |
| 4 5/16" | 4.312" | 109.54mm | 4 1/2" |
| 4 21/64" | 4.328" | 109.93mm | 4 1/2" |
| 4 11/32" | 4.343" | 110.33mm | 4 1/2" |
| 4 23/64" | 4.359" | 110.73mm | 4 9/16" |
| 4 3/8" | 4.375" | 111.12mm | 4 9/16" |
| 4 25/64" | 4.390" | 111.52mm | 4 9/16" |
| 4 13/32" | 4.406" | 111.92mm | 4 9/16" |
| 4 27/64" | 4.421" | 112.32mm | 4 5/8" |
| 4 7/16" | 4.437" | 112.71mm | 4 5/8" |
| 4 29/64" | 4.453" | 113.11mm | 4 5/8" |
| 4 15/32" | 4.468" | 113.51mm | 4 5/8" |
| 4 31/64" | 4.484" | 113.90mm | 4 11/16" |
| 4 1/2" | 4.500" | 114.30mm | 4 11/16" |
| 4 33/64" | 4.515" | 114.70mm | 4 11/16" |
| 4 17/32" | 4.531" | 115.09mm | 4 11/16" |
| 4 35/64" | 4.546" | 115.49mm | 4 3/4" |
| 4 9/16" | 4.562" | 115.89mm | 4 3/4" |
| 4 37/64" | 4.578" | 116.28mm | 4 3/4" |
| 4 19/32" | 4.593" | 116.68mm | 4 3/4" |
| 4 39/64" | 4.609" | 117.08mm | 4 13/16" |
| 4 5/8" | 4.625" | 117.47mm | 4 13/16" |
| 4 41/64" | 4.640" | 117.87mm | 4 13/16" |
| 4 21/32" | 4.656" | 118.27mm | 4 13/16" |
| 4 43/64" | 4.671" | 118.67mm | 4 7/8" |
| 4 11/16" | 4.687" | 119.06mm | 4 7/8" |
| 4 45/64" | 4.703" | 119.46mm | 4 7/8" |
| 4 23/32" | 4.718" | 119.86mm | 4 7/8" |
| 4 47/64" | 4.734" | 120.25mm | 4 15/16" |
| 4 3/4" | 4.750" | 120.65mm | 4 15/16" |
| 4 49/64" | 4.765" | 121.05mm | 4 15/16" |
| 4 25/32" | 4.781" | 121.44mm | 4 15/16" |
| 4 51/64" | 4.796" | 121.84mm | 5" |
| 4 13/16" | 4.812" | 122.24mm | 5" |
| 4 53/64" | 4.828" | 122.63mm | 5" |
| 4 27/32" | 4.843" | 123.03mm | 5" |
| 4 55/64" | 4.859" | 123.43mm | 5 1/16" |
| 4 7/8" | 4.875" | 123.82mm | 5 1/16" |
| 4 57/64" | 4.890" | 124.22mm | 5 1/16" |
| 4 29/32" | 4.906" | 124.62mm | 5 1/16" |
| 4 59/64" | 4.921" | 125.02mm | 5 1/8" |
| 4 15/16" | 4.937" | 125.41mm | 5 1/8" |
| 4 61/64" | 4.953" | 125.81mm | 5 1/8" |
| 4 31/32" | 4.968" | 126.21mm | 5 1/8" |
| 4 63/64" | 4.984" | 126.60mm | 5 3/16" |
| 5" | 5.000" | 127.00mm | 5 3/16" |
| Cutting Size | |||
|---|---|---|---|
| Fraction | Decimal | Millimeter | Base Size |
| 5 1/64" | 5.015" | 127.40mm | 5 3/16" |
| 5 1/32" | 5.031" | 127.79mm | 5 3/16" |
| 5 3/64" | 5.046" | 128.19mm | 5 1/4" |
| 5 1/16" | 5.062" | 128.59mm | 5 1/4" |
| 5 5/64" | 5.078" | 128.98mm | 5 1/4" |
| 5 3/32" | 5.093" | 129.38mm | 5 1/4" |
| 5 7/64" | 5.109" | 129.78mm | 5 5/16" |
| 5 1/8" | 5.125" | 130.17mm | 5 5/16" |
| 5 9/64" | 5.140" | 130.57mm | 5 5/16" |
| 5 5/32" | 5.156" | 130.97mm | 5 5/16" |
| 5 11/64" | 5.171" | 131.37mm | 5 3/8" |
| 5 3/16" | 5.187" | 131.76mm | 5 3/8" |
| 5 13/64" | 5.203" | 132.16mm | 5 3/8" |
| 5 7/32" | 5.218" | 132.56mm | 5 3/8" |
| 5 15/64" | 5.234" | 132.95mm | 5 7/16" |
| 5 1/4" | 5.250" | 133.35mm | 5 7/16" |
| 5 17/64" | 5.265" | 133.75mm | 5 7/16" |
| 5 9/32" | 5.281" | 134.14mm | 5 7/16" |
| 5 19/64" | 5.296" | 134.54mm | 5 1/2" |
| 5 5/16" | 5.312" | 134.94mm | 5 1/2" |
| 5 21/64" | 5.328" | 135.33mm | 5 1/2" |
| 5 11/32" | 5.343" | 135.73mm | 5 1/2" |
| 5 23/64" | 5.359" | 136.13mm | 5 9/16" |
| 5 3/8" | 5.375" | 136.52mm | 5 9/16" |
| 5 25/64" | 5.390" | 136.92mm | 5 9/16" |
| 5 13/32" | 5.406" | 137.32mm | 5 9/16" |
| 5 27/64" | 5.421" | 137.72mm | 5 5/8" |
| 5 7/16" | 5.437" | 138.11mm | 5 5/8" |
| 5 29/64" | 5.453" | 138.51mm | 5 5/8" |
| 5 15/32" | 5.468" | 138.91mm | 5 5/8" |
| 5 31/64" | 5.484" | 139.30mm | 5 11/16" |
| 5 1/2" | 5.500" | 139.70mm | 5 11/16" |
| 5 33/64" | 5.515" | 140.10mm | 5 11/16" |
| 5 17/32" | 5.531" | 140.49mm | 5 11/16" |
| 5 35/64" | 5.546" | 140.89mm | 5 3/4" |
| 5 9/16" | 5.562" | 141.29mm | 5 3/4" |
| 5 37/64" | 5.578" | 141.68mm | 5 3/4" |
| 5 19/32" | 5.593" | 142.08mm | 5 3/4" |
| 5 39/64" | 5.609" | 142.48mm | 5 13/16" |
| 5 5/8" | 5.625" | 142.87mm | 5 13/16" |
| 5 41/64" | 5.640" | 143.27mm | 5 13/16" |
| 5 21/32" | 5.656" | 143.67mm | 5 13/16" |
| 5 43/64" | 5.671" | 144.07mm | 5 7/8" |
| 5 11/16" | 5.687" | 144.46mm | 5 7/8" |
| 5 45/64" | 5.703" | 144.86mm | 5 7/8" |
| 5 23/32" | 5.718" | 145.26mm | 5 7/8" |
| 5 47/64" | 5.734" | 145.65mm | 5 15/16" |
| 5 3/4" | 5.750" | 146.05mm | 5 15/16" |
| 5 49/64" | 5.765" | 146.45mm | 5 15/16" |
| 5 25/32" | 5.781" | 146.84mm | 5 15/16" |
| 5 51/64" | 5.796" | 147.24mm | 6" |
| 5 13/16" | 5.812" | 147.64mm | 6" |
| 5 53/64" | 5.828" | 148.03mm | 6" |
| 5 27/32" | 5.843" | 148.43mm | 6" |
| 5 55/64" | 5.859" | 148.83mm | 6 1/16" |
| 5 7/8" | 5.875" | 149.22mm | 6 1/16" |
| 5 57/64" | 5.890" | 149.62mm | 6 1/16" |
| 5 29/32" | 5.906" | 150.02mm | 6 1/16" |
| 5 59/64" | 5.921" | 150.42mm | 6 1/8" |
| 5 15/16" | 5.937" | 150.81mm | 6 1/8" |
| 5 61/64" | 5.953" | 151.21mm | 6 1/8" |
| 5 31/32" | 5.968" | 151.61mm | 6 1/8" |
| 5 63/64" | 5.984" | 152.00mm | 6 3/16" |
| 6" | 6.000" | 152.40mm | 6 1/4" |
| Cutting Size | |||
|---|---|---|---|
| Fraction | Decimal | Millimeter | Base Size |
| 6 1/64" | 6.015" | 152.80mm | 6 1/4" |
| 6 1/32" | 6.031" | 153.19mm | 6 1/4" |
| 6 3/64" | 6.046" | 153.59mm | 6 5/16" |
| 6 1/16" | 6.062" | 153.99mm | 6 5/16" |
| 6 5/64" | 6.078" | 154.38mm | 6 5/16" |
| 6 3/32" | 6.093" | 154.78mm | 6 5/16" |
| 6 7/64" | 6.109" | 155.18mm | 6 3/8" |
| 6 1/8" | 6.125" | 155.57mm | 6 3/8" |
| 6 9/64" | 6.140" | 155.97mm | 6 3/8" |
| 6 5/32" | 6.156" | 156.37mm | 6 3/8" |
| 6 11/64" | 6.171" | 156.77mm | 6 7/16" |
| 6 3/16" | 6.187" | 157.16mm | 6 7/16" |
| 6 13/64" | 6.203" | 157.56mm | 6 7/16" |
| 6 7/32" | 6.218" | 157.96mm | 6 7/16" |
| 6 15/64" | 6.234" | 158.35mm | 6 1/2" |
| 6 1/4" | 6.250" | 158.75mm | 6 1/2" |
| 6 17/64" | 6.265" | 159.15mm | 6 1/2" |
| 6 9/32" | 6.281" | 159.54mm | 6 1/2" |
| 6 19/64" | 6.296" | 159.94mm | 6 9/16" |
| 6 5/16" | 6.312" | 160.34mm | 6 9/16" |
| 6 21/64" | 6.328" | 160.73mm | 6 9/16" |
| 6 11/32" | 6.343" | 161.13mm | 6 9/16" |
| 6 23/64" | 6.359" | 161.53mm | 6 5/8" |
| 6 3/8" | 6.375" | 161.92mm | 6 5/8" |
| 6 25/64" | 6.390" | 162.32mm | 6 5/8" |
| 6 13/32" | 6.406" | 162.72mm | 6 5/8" |
| 6 27/64" | 6.421" | 163.12mm | 6 11/16" |
| 6 7/16" | 6.437" | 163.51mm | 6 11/16" |
| 6 29/64" | 6.453" | 163.91mm | 6 11/16" |
| 6 15/32" | 6.468" | 164.31mm | 6 11/16" |
| 6 31/64" | 6.484" | 164.70mm | 6 3/4" |
| 6 1/2" | 6.500" | 165.10mm | 6 3/4" |
| 6 33/64" | 6.515" | 165.50mm | 6 3/4" |
| 6 17/32" | 6.531" | 165.89mm | 6 3/4" |
| 6 35/64" | 6.546" | 166.29mm | 6 13/16" |
| 6 9/16" | 6.562" | 166.69mm | 6 13/16" |
| 6 37/64" | 6.578" | 167.08mm | 6 13/16" |
| 6 19/32" | 6.593" | 167.48mm | 6 13/16" |
| 6 39/64" | 6.609" | 167.88mm | 6 7/8" |
| 6 5/8" | 6.625" | 168.27mm | 6 7/8" |
| 6 41/64" | 6.640" | 168.67mm | 6 7/8" |
| 6 21/32" | 6.656" | 169.07mm | 6 7/8" |
| 6 43/64" | 6.671" | 169.47mm | 6 15/16" |
| 6 11/16" | 6.687" | 169.86mm | 6 15/16" |
| 6 45/64" | 6.703" | 170.26mm | 6 15/16" |
| 6 23/32" | 6.718" | 170.66mm | 6 15/16" |
| 6 47/64" | 6.734" | 171.05mm | 7" |
| 6 3/4" | 6.750" | 171.45mm | 7" |
| 6 49/64" | 6.765" | 171.85mm | 7" |
| 6 25/32" | 6.781" | 172.24mm | 7" |
| 6 51/64" | 6.796" | 172.64mm | 7 1/16" |
| 6 13/16" | 6.812" | 173.04mm | 7 1/16" |
| 6 53/64" | 6.828" | 173.43mm | 7 1/16" |
| 6 27/32" | 6.843" | 173.83mm | 7 1/16" |
| 6 55/64" | 6.859" | 174.23mm | 7 1/8" |
| 6 7/8" | 6.875" | 174.62mm | 7 1/8" |
| 6 57/64" | 6.890" | 175.02mm | 7 1/8" |
| 6 29/32" | 6.906" | 175.42mm | 7 1/8" |
| 6 59/64" | 6.921" | 175.82mm | 7 3/16" |
| 6 15/16" | 6.937" | 176.21mm | 7 3/16" |
| 6 61/64" | 6.953" | 176.61mm | 7 3/16" |
| 6 31/32" | 6.968" | 177.01mm | 7 3/16" |
| 6 63/64" | 6.984" | 177.40mm | 7 1/4" |
| 7" | 7.000" | 177.80mm | 7 1/4" |
To order feed-thru punches, specify cutting size, base size and height.
Don't see what you need? We'll make it for you! Submit an RFQ now.
