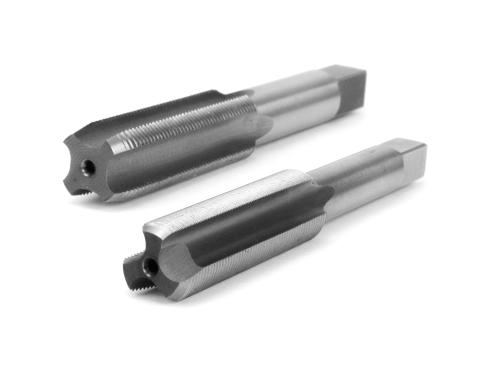

Threaded Shank Punch Taps
Overview of Features:
- Threaded shank punches are manufactured with thread sizes for optimum performance in your dies.
- C & K offers the full range of taps needed for installation.
- High speed hand taps for all thread sizes.
- See tap drill chart here.
Tap Sizes
| Part Number | Punch Numbers | Tap Size |
|---|---|---|
| TAP.295 | Pin, #1-11 Tubes (except 7/8" height) | 0.295 x 32 |
| TAP.294 | Pin, #1-11 Tubes (7/8" height only) | 0.294 x 24 |
| TAP.365 | #10A, 12-15 Tubes | 0.365 x 32 |
| TAP.510 | #15A, 16-18 Tubes | 0.510 x 32 |
| TAP.625 | #18A, 19-22 Tubes | 0.625 x 24 |
| TAP.750 | #22A, 23-24 Tubes | 0.750 x 24 |
| TAP1.000 | #25-26 Tubes | 1 x 14 |
| TAP1.125 | #27-28 Tubes | 1.125 x 18 |
| TAP1.250 | #29-30 Tubes | 1.250 x 18 |
