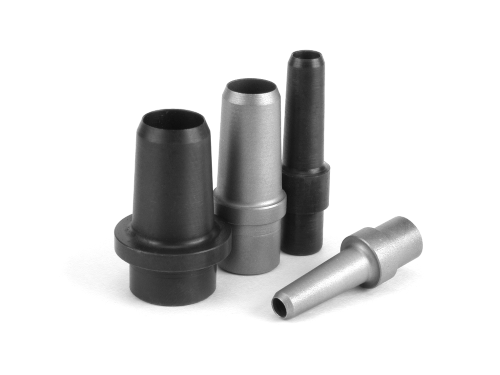

Press Fit Tube Punches
C & K Press Fit Tube Punches are ideal for heavy cutting in thick materials such as leather, plastic, rubber and similar materials. These punches maybe used for cutting multiple layers of material at one time.
Overview of Features
- For use in solid steel dies.
- Press fit shanks allow for simple cutting size changes.
- All press fit tube punches are made from thru-hardened and tempered alloy steel for durability.
- 9/32" shank length.
- Press fit tube punches cut approximately .007" larger than nominal hole size.

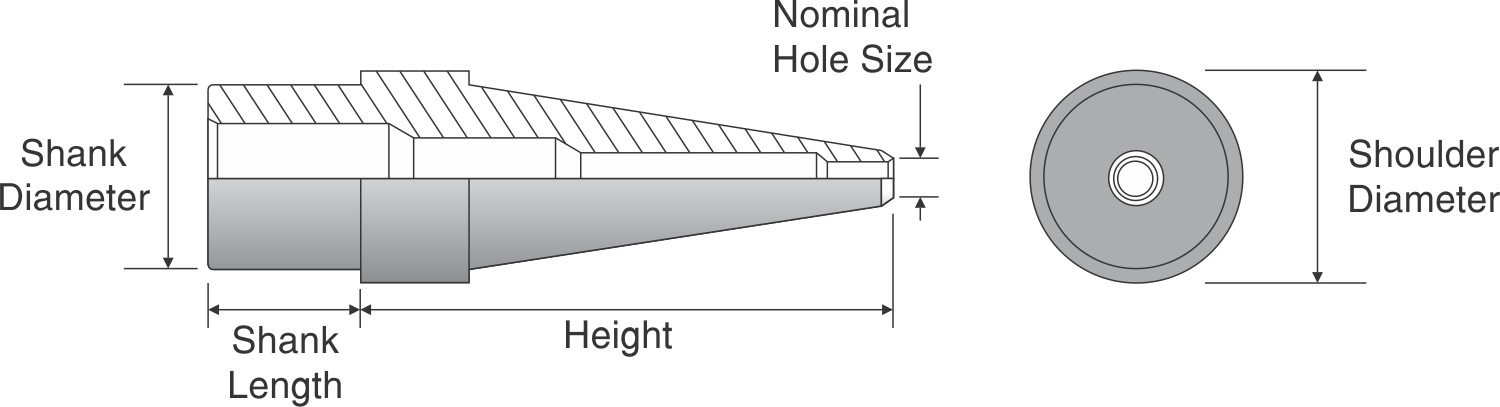

- See reference drawing here.
Available heights: 3/4", 7/8" and 1".
Press Fit Tube Punch Ordering Information
To order press fit tube punches please specify:
- Order Number (see size chart)
- Height
Cutting Sizes for Press Fit Tube Punches
| Order Number | Nominal Hole Size | Shank Diameter | Shoulder Diameter |
|---|---|---|---|
| 1 | .040" | 5/16" | 3/8" |
| 2 | 3/64" | 5/16" | 3/8" |
| 3 | 1/16" | 5/16" | 3/8" |
| 4 | 5/64" | 5/16" | 3/8" |
| 5 | 3/32" | 5/16" | 3/8" |
| 6 | 7/64" | 5/16" | 3/8" |
| 7 | 1/8" | 5/16" | 3/8" |
| 8 | 5/32" | 5/16" | 3/8" |
| 9 | 11/64" | 5/16" | 3/8" |
| 10 | 3/16" | 5/16" | 3/8" |
| 11 | .1935" | 5/16" | 3/8" |
| 12 | 13/64" | 5/16" | 3/8" |
| 13 | 7/32" | 5/16" | 3/8" |
| 14 | 1/4" | 3/8" | 7/16" |
| 16 | 5/16" | 7/16" | 1/2" |
| 18 | 3/8" | 9/16" | 3/4" |
| 20 | 7/16" | 5/8" | 3/4" |
| 22 | 1/2" | 5/8" | 3/4" |
To order press fit tube punches, specify order number and height.
Don't see what you need? We'll make it for you! Submit an RFQ now.
